SRI Engineering
Machine capacity and manufacturer reference specifications.
Public manufacturer data is shown to help customers understand the machine envelope. Installed options and actual job feasibility are confirmed before quotation.
Fleet detail
Machine selection follows the part—not the other way around.
Component envelope, geometry, tool access, supplied condition, setup strategy and quantity are reviewed before a machine is committed.
Installed BFW VMC

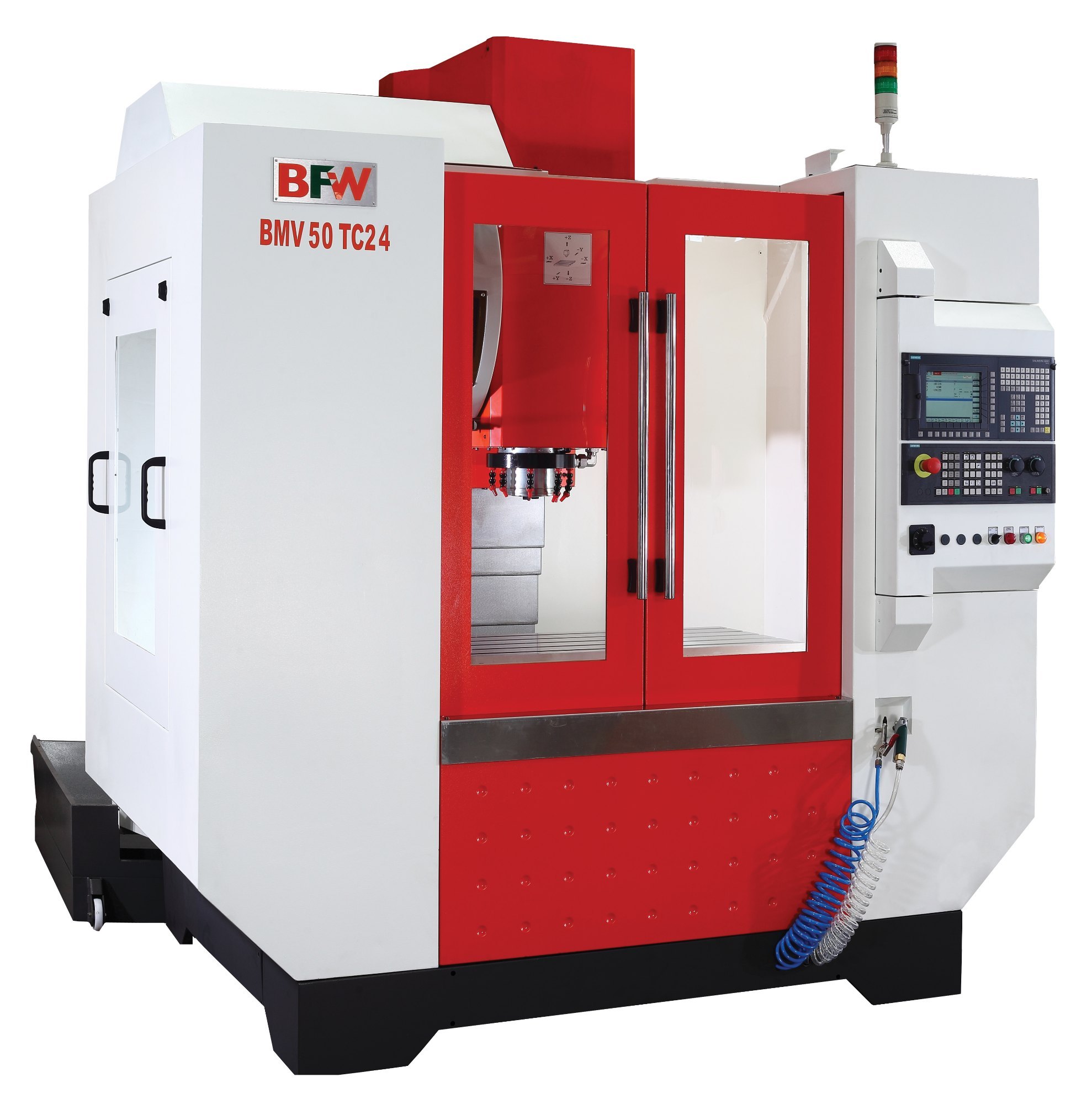

BFW BMV 50 TC24
Fixed-column C-frame VMC designed around rigidity, productivity and heavy-duty machining.
- X / Y / Z travel
- 800 / 510 / 510 mm
- Table size / max load
- 1000 × 510 mm / 600 kg
- Standard spindle
- BT40 · 8000 rpm
- Standard spindle power
- 7.5 / 11 kW
- Standard rapid traverse
- 40 / 40 / 40 m/min
- Standard ATC
- 24-tool twin arm
- Positioning accuracy
- 0.012 mm
- Repeatability
- 0.010 mm
2 installed machines
Ace MCV-450
The current MCV-450 Plus platform is used as the public manufacturer reference; installed-machine options may differ.
- X / Y / Z travel
- 800 / 500 / 500 mm
- Table size / max load
- 1000 × 510 mm / 400 kg
- Standard spindle
- BT40 · 6000 rpm
- Optional spindle speed
- Up to 12000 rpm
- Rapid traverse
- 36 / 36 / 36 m/min
- Standard / optional ATC
- 24 / 30 tools
- Positioning accuracy
- 0.010 mm
- Repeatability
- ±0.003 mm
Installed Ace VMC

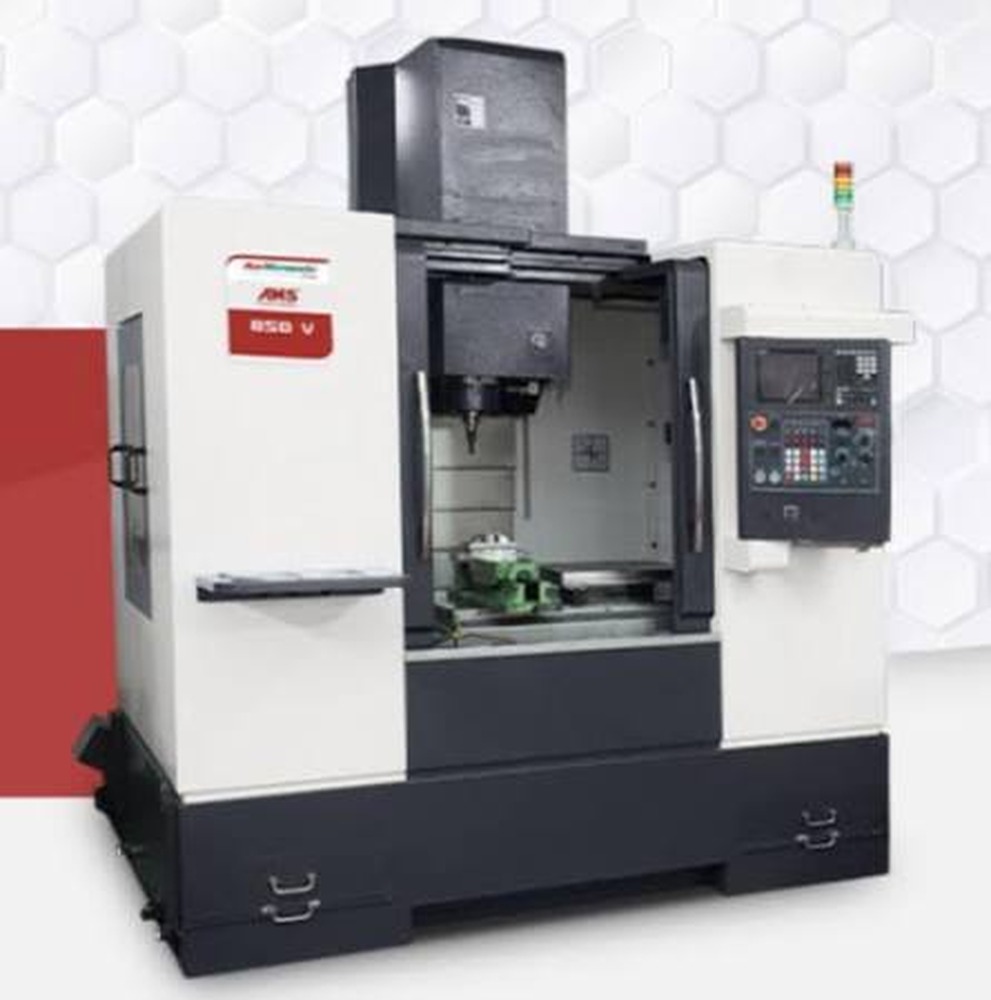

Ace 850 V
Rigid V-series machining centre with LM guideways on all three axes.
- X / Y / Z travel
- 800 / 510 / 500 mm
- Table size / max load
- 1000 × 510 mm / 400 kg
- Standard spindle
- BT40 · 6000 rpm
- Optional spindle speed
- Up to 15000 rpm
- Rapid traverse
- 36 / 36 / 36 m/min
- Standard / optional ATC
- 24 / 30 tools
- Positioning accuracy
- 0.010 mm
- Repeatability
- ±0.003 mm
Supporting operation
Drilling & tapping
Dedicated support for drawing-defined holes and threaded features.
- Operations
- Drilling and tapping
- Workholding
- Reviewed per component
- Thread requirement
- Confirmed from drawing
- Job feasibility
- Confirmed before quotation
Specification note: values are sourced from the current manufacturer pages. Installed options, machine condition, fixture space and safe working envelope govern actual job feasibility.
Machine selection
What determines the right machine and setup.
01
Component envelope
Overall size, fixture space, tool clearance and safe axis movement.
02
Feature access
Internal geometry, pockets, hole patterns and required orientations.
03
Starting condition
Casting, fabrication, plate, block or partially machined component.
04
Critical relationships
Datum, internal feature, surface and position requirements.
05
Production need
Development requirement, one-time batch or recurring production.
06
Inspection need
Agreed checks and documentation required before dispatch.
